SEGGER Evaluation Software for NXP MIMXRT685-EVK
SEGGER Evaluation Software
SEGGER Notifications
Subscribe to SEGGER Evaluation Software Notifications
Recommended Software
SEGGER Embedded Studio
SEGGER Embedded Studio is a streamlined and powerful C/C++ IDE (Integrated Development Environment) for ARM microcontrollers. It is specifically designed to provide users with everything needed for professional embedded development: an all-in-one solution providing stability and a continuous workflow.
SEGGER SystemView
SEGGER SystemView is a real-time recording and visualization tool that reveals the true runtime behavior of an application, going far deeper than the insight provided by debuggers. This is particularly effective when developing and working with complex systems comprising multiple threads and interrupts: SystemView can ensure a system performs as designed, can track down inefficiencies, and show unintended interactions and resource conflicts.
Data Sheets

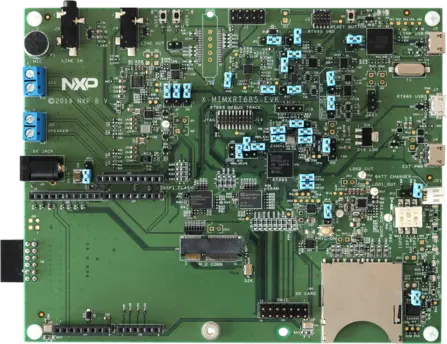

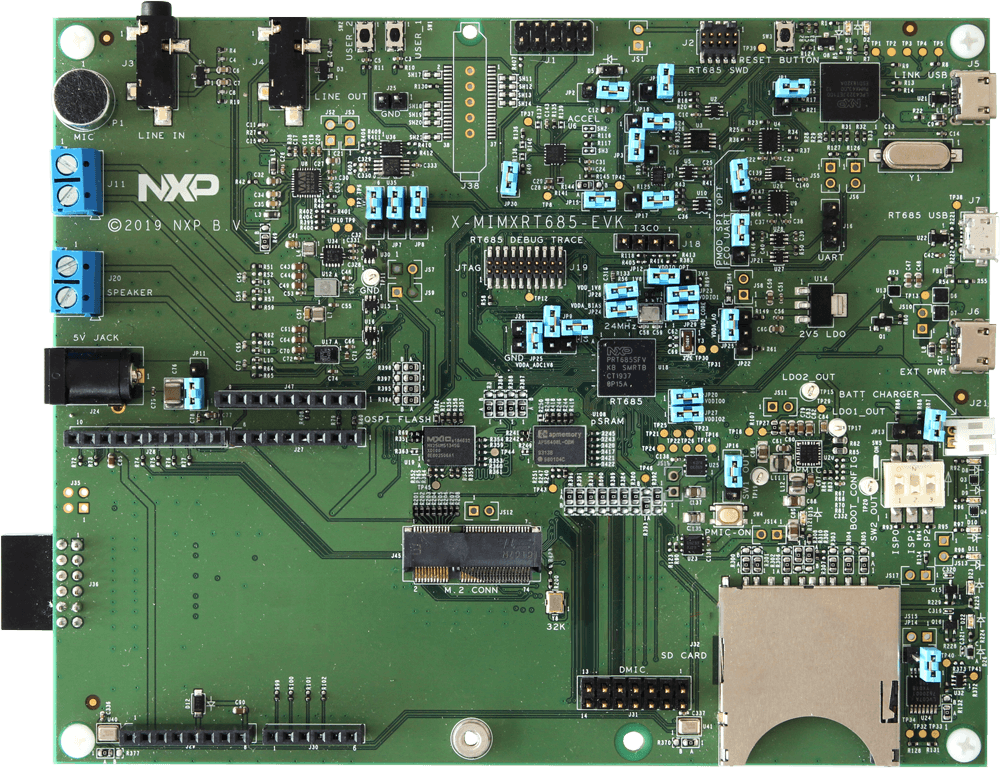

iMX RT686 Evaluation Board
- i.MX RT685 Cortex-M33 core processor with Cadence Xtensa HiFi4 DSP
- Onboard, high-speed USB, Link2 debug probe with CMSIS-DAP protocol (supporting Cortex M33 debug only)
- High speed USB port with micro A/B connector for the host or device functionality
- UART, I2C and SPI port bridging from i.MX RT685 target to USB via the on-board debug probe
- Optional external debug probe connections with trace option (10 or 20 pin Cortex-M connectors, later required for trace)
- NXP Semiconductors
- i.MX RT685 Evaluation Board, Rev. 0, April 2020 User's Guide 3 / 32
- 512 MB Macronix Octal SPI Flash operating at 1.8 V
- 4.5 MB Apmemory PSRAM
- Full size SD card slot (SDIO)
- NXP PCA9420UK PMIC
- User LEDs
- Reset and User buttons
- Arduino and PMod/Host expansion connectors
- NXP FXOS8700CQ accelerometer
- Stereo audio codec with line in/out and electret microphone
- Stereo NXP TFA9894 digital amplifiers, with option for external +5V power for higher performance speakers
- Support for up to eight off-board digital microphones via 12-pin heade
- Two on-board DMICS
RT685 Cortex-M33
- Dual-core microcontroller with 32-bit Cortex®-M33 Xtensa HiFi4 Audio DSP CPUs
- 4.5 MB SRAM
- FlexSPI with cache and dynamic decryption
- High-speed USB device/host + Phy
- 12-bit 1 Msamples/s ADC
- Analog Comparator
- Audio subsystems supporting to 8 DMIC channels
- SDIO/eMMC
- AES/SHA/Crypto M33 coprocessor
- PUF key generation
NXP MIMXRT685-EVK Media
Instruction Tracing and Live Code Coverage / Code Profiling on the NXP i.MX RT600
