SEGGER Evaluation Software for Atmel SAMA5D3x-MB

Atmel - Sama5d3x-mb

Other downloads

Download embOS for ARM 7/9/11/XScale/Cortex-A/R and SEGGER Embedded Studio

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

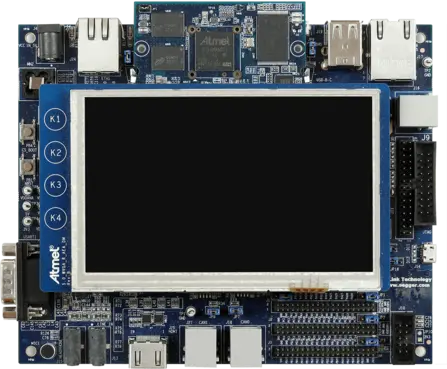

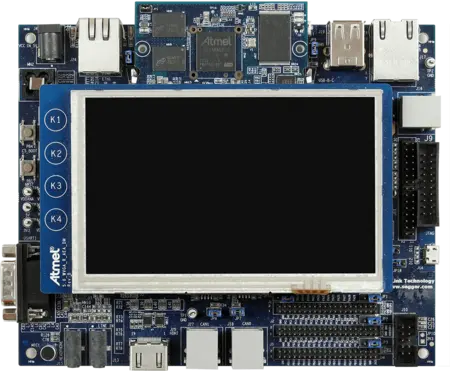

Atmel SAMA5D3x-MB

  • One 200-pin SODIMM socket
  • Two high-speed memory card hosts
  • 1 x SD card slot (can also read MMC cards)
  • 1 x micro SD card slot
  • 3 x 20 pin header
  • 1 x 20 + 1 x 15 pin header LCD connector
  • 1 x 10 pin header ISI connector (Image Sensor)
  • One 1-Wire EEPROM DS28EC20
  • One power LED
  • 1 x Gigabit Ethernet
  • 1 x 10/100 MHz Ethernet
  • 2 x USB High-speed 2.0 Host
  • 1 x USB High-speed 2.0 Host/Device
  • 1 x USARTs, 1 x DBGU
  • 2 x CAN connectors
  • 1 x 10-pin header ZigBee connector
  • 1 x Smart DAA (Softmodem interface)
  • Wolfson's 8904 Mic in, Headphone out signals
  • 1 x HDMI
  • LCD TFT Controller with overlay, alpha-blending, rotation, scaling and color
  • space conversion
  • ITU-R BT. 601/656 Image Sensor Interface
  • 1 x On-board SAM-ICE
  • 1 x Bridge USB/UART DBGU
  • On-board Lithium Battery for CMOS backup
  • System power: +5V DC +/-5%
  • Backup: +1.65V to 3.6V DC
  • RoHS compliant
  • CE and FCC Part 15 compliant
  • Dimensions: 165 * 135 * 20 mm

SAMA5D33

  • ARM Cortex-A5 Processor with ARM v7-A Thumb2 Instruction Set
  • CPU Frequency up to 536 MHz
  • 160 Kbyte Internal ROM
  • 128 Kbyte Internal SRAM
  • 39 DMA Channels including two 8-channel 64-bit Central DMA Controllers
  • 64-bit Advanced Interrupt Controller
  • LCD TFT Controller with Overlay, Alpha-blending, Rotation, Scaling and Color Space Conversion
  • Three HS/FS/LS USB Ports with On-Chip Transceivers
  • One Device Controller
  • One Host Controller with Integrated Root Hub (3 Downstream Ports)
  • One 10/100/1000 Mbps Gigabit Ethernet MAC Controller (GMAC) with IEEE1588 support
  • Three High Speed Memory Card Hosts (eMMC 4.3 and SD 2.0)
  • Three Two-wire Interface up to 400 Kbit/s supporting I2C Protocol and SMBUS
  • One 4-channel 16-bit PWM Controller
  • One 12-channel 12-bit Analog-to-Digital Converter with Resistive Touch-Screen function
  • SHA: Supports Secure Hash Algorithm (SHA1, SHA224, SHA256, SHA384, SHA512)
  • Memory Management Unit
  • AES: 256-bit, 192-bit, 128-bit Key Algorithm
  • TDES: Two-key or Three-key Algorithms
  • Atmel Secure Boot Solution
  • Five 32-bit Parallel Input/Output Controllers
