SEGGER Evaluation Software for EA LPC1788 Developers Kit
SEGGER Evaluation Software
Included components:
| Product | Supported features |
|---|---|
| emPower OS | |
BASE + Encryption, FAT, FAT LFN, Journaling, RAMDisk | |
BASE + CoAP Server / Client, DHCP Server, (m)DNS/LLMNR/DNS-SD Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, SMTP Client, SNMP Agent, SNTP Client, UPnP, WebSocket, emNet NXP driver | |
BASE + Bulk, CDC, DFU, HID, MSD, MSD-CDROM, MTP, Printer Class, IP-over-USB component, VirtualMSD, Target Driver for LPC17xx | |
BASE + Audio, Bulk, CCID, CDC, FTDI UART, HID, LAN, MIDI, MSD, MTP, Printer Class, OHCI Driver | |
Download SEGGER Evaluation Software for EA LPC1788 Developers Kit and SEGGER Embedded Studio
SEGGER Notifications
Subscribe to SEGGER Evaluation Software Notifications
Data Sheets

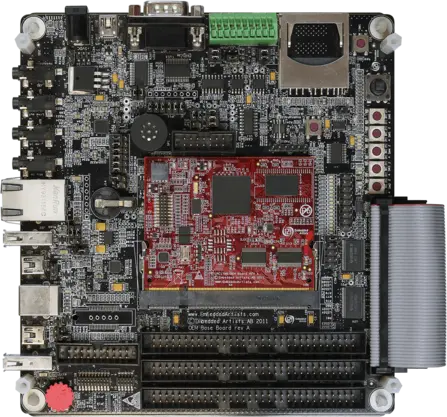

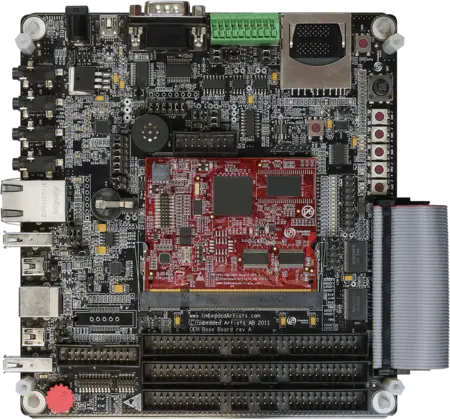

EA LPC1788 Developers Kit
- 128 MB NAND FLASH + 512 kB internal
- 32 MB SDRAM + 96 KB internal
- 100/10M Ethernet interface based on SMSC LAN8720 Ethernet PHY
- 12.000 MHz crystal for CPU
- 32.768 kHz crystal for RTC
- +3.3V powering
- 200 pos expansion connector (as defined in SODIMM standard), 0.6mm pitch
- 256 Kbit I2C E2PROM for storing non-volatile parameters
- Buffered 32- or 16-bit databus
OEM base board main features
- LCD expansion connector with control signals for touch screen interface
- Expansion connector with all OEM Board signals
- Ethernet connector (RJ45)
- MMC/SD interface & connector
- USB1: OTG or Host interface & connector
- USB2: Device or Host interface & connector
- SWD/JTAG connector
- Trace connector and pads for ETM connector
- Power supply, either via USB or external 5V DC
- Parallel NOR flash on external memory bus
- 16-bit register and LEDs on external memory bus
- 5-key joystick
- 3-axis accelerometer (I2C connected)
- LM75 temperature sensor (I2C connected)
- 5 push-button keys (four via I2C and one on ISP-ENABLE)
- 9 LEDs (8 via I2C and one on ISP-ENABLE)
- USB-to-serial bridge on UART #0 (FT232R) and ISP functionality
- Reset push-button and LED
LPC1788
- Running at frequencies of up to 120 MHz
- Standard JTAG test/debug interface, Serial Wire Debug and Serial WireTrace Port
- Emulation trace module supports real-time trace
- 512 kB on-chip flash program memory
- 96 kB on-chip SRAM
- 4 kB on-chip EEPROM
- LCD controller, supporting both STN and TFT displays
- External Memory Controller (EMC)
- Eight channel General Purpose DMA controller (GPDMA)
- Ethernet MAC with MII/RMII interface and associated DMA controller
- USB 2.0 full-speed dual port device/host/OTG controller with on-chip PHY and DMA
- SD/MMC memory card interface
- Up to 165 General Purpose I/O (GPIO) pins
- Real-Time Clock (RTC) with a separate power domain
- Four reduced power modes: Sleep, Deep-sleep, Power-down, and Deep power-down
- Processor wake-up from Power-down mode via any interrupt
- 12 MHz Internal RC oscillator (IRC) trimmed to 1% accuracy
