SEGGER Evaluation Software for NXP TWR-K70F120M Tower System

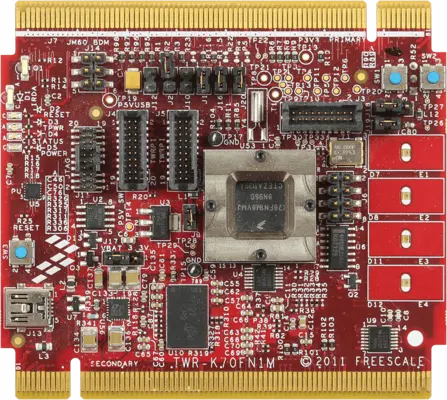

NXP - Freescale twr-k70f120m Tower System

Other downloads

Download embOS for Cortex-M and SEGGER Embedded Studio

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

NXP TWR-K70F120M Tower System

  • Tower compatible microcontroller module
  • MK70FN1M0VMJ12: K70FN1M in a 256 MAPBGA with 120 MHz operation
  • Touch Tower Plug-in Socket
  • General purpose Tower Plug-in (TWRPI) socket
  • On-board JTAG debug circuit (OSJTAG) with virtual serial port
  • 1Gb of DDR2 SDRAM memory
  • 2Gb of SLC NAND flash memory
  • Three axis accelerometer (MMA8451Q)
  • 4 user-controllable LEDs
  • 4 capacitive touch pads
  • 2 user pushbutton switches
  • Potentiometer
  • Battery Holder for 20mm lithium battery (e.g. 2032, 2025)
  • Micro-SD Card slot

Kinetis MK70FN1M0VMJ12

  • 32-bit ARM Cortex-M4 core with DSP instructions
  • 120MHz maximum core operating frequency
  • 256 MAPBGA, 17mm x 17mm, 1.0mm pitch package
  • 1.71V – 3.6V operating voltage input range
  • 1 Mbyte of program flash, 128 Kbytes of static RAM
  • DDR controller supporting DDR1, LPDDR1, and DDR2 memory
  • NAND flash controller
  • External bus interface
  • Power management controller with 10 different power modes
  • Multi-purpose clock generator with PLL and FLL operation modes
  • 16-bit SAR ADC, 12-bit DAC
  • High-speed analog comparator with 6-bit DAC
  • Programmable voltage reference
  • USB high-speed OTG controller
  • USB full-speed/low-speed OTG/Host/Device controller with device charge detect
  • 10/100 Mbps Ethernet MAC
  • SPI, I²C (w/ SMBUS support), UART (w/ ISO7816, CEA709.1-B (LON), and IrDA support), CAN, I²S
  • SD Host Controller (SDHC)
  • GPIO with pin interrupt support, DMA request capability, digital glitch filtering
  • Capacitive touch sensing inputs (TSI)
  • Debug interfaces: JTAG, cJTAG, SWD
  • Trace: TPIO, FPB, DWT, ITM, ETM, ETB
