SEGGER Evaluation Software for GigaDevice GD32VF103V Eval

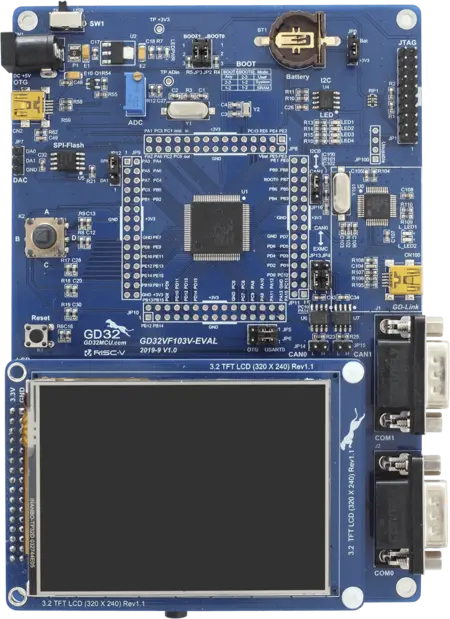

GD32VF103V-EVAL

SEGGER Evaluation Software

Included components:

Product	Supported features
embOS	Core + Profiling
emWin	BASE + AntiAliasing, Bitmap Converter, Font Converter, Memory Devices, Simulation, Widgets, Window Manager, GUIDRV_FlexColor

SEGGER Evaluation Software available upon request

Other downloads

Download SEGGER Demo Software for GD32VF103 Eval and SEGGER Embedded Studio

Download embOS for RISC-V and SEGGER Embedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data sheets

GD32VF103VBT6

Microcontroller: GD32VF103VBT6
Operating Voltage: 2.6 V - 3.8 V
Input Voltage: 5 V USB or 5 VDC Jack
IO Voltages: 5 V supported
RAM: 32 KB
Flash Memory: 16 Mbit SPI NOR
Host Interface (microUSB): Program, Debug, and Serial Communication
Connectivity:
SWD
User button key
LED
CAN: 2
I2C: 2
I2S: 2
USART: 2
RTC
SPI: 3
ADC
DAC
EXMC
USBFS
Monitor: 3.2" TFT-LCD

GD32VF103VBT6

RISC-V core
108MHz
128KB internal ROM
32KB internal RAM
JTAG, SPI I2C, and UART interfaces.
