SiFive-ARTY Adapter
The SiFive-ARTY Adapter allows debug connections between the J-Link and the ARTY board running SiFive RISC-V core bitstreams.
Overview

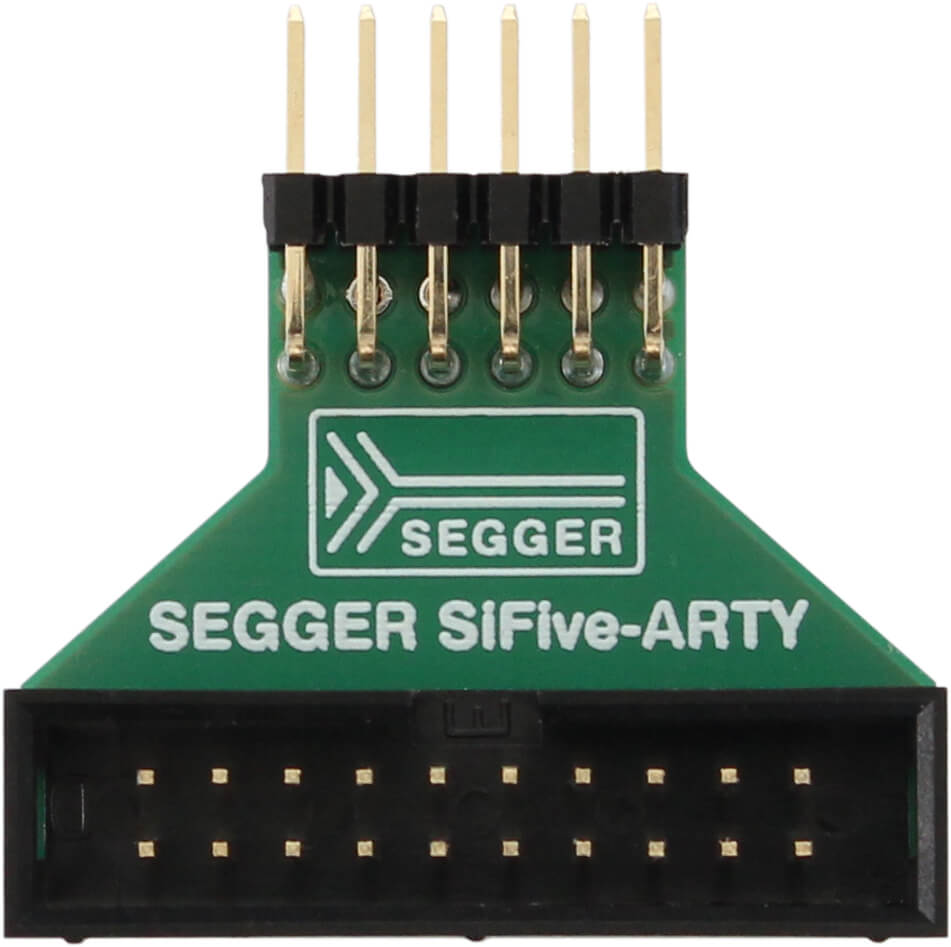

The SiFive-ARTY Adapter allows debug connections between J-Link and the ARTY board running SiFive RISC-V core bitstreams. The ARTY board provides several identical headers where the JD header is used as the debug connector, when running SiFive RISC-V bitstreams on the ARTY board.
| Pin | Signal |
|---|---|
| 1 | NC |
| 2 | VTref / VDD |
| 3 | NC |
| 4 | GND |
| 5 | NC |
| 6 | NC |
| 7 | TCK |
| 8 | RESET |
| 9 | TRST |
| 10 | TMS |
| 11 | TDO |
| 12 | TDI |
